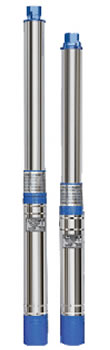

4" Borewell Submersible Pumps

4’’ Borewell submersible pumps, suitable for borewells of 100mm dia above consists of wet type, wate cooled and lubricated squirrelcage motor with poly wrap insulated wire couples to multistage centrifugal pump consisting of casings made of Noryl material with radial or mixed flow impellers. The motor and pump castings are of corrosion free stainless steel pipes. These pumpsets available in Single / Three Phase supply are widely suitable for domestic, industrial, agricultural and public utility services.

Application

1. Deep bore well application
2. Drip and sprinkler irrigation systems
3. High pressure washing for garages
4. Industrial water supply
5. Multi storey buildings and bungalows

Sailent Features

1. Water cooled motor.
2. Capacitor start and run motors
3. Stainless steel motor body and motor shaft for longer life
4. Epoxy coated rotors
5. Specially designed to withstand wide voltage fluctuations 140-240 volts in Single phase and 300-440 Volts in three phase.
6. LTB 4 graded Gun metal bushes
7. High grade oil seal prevents the entry of sand and dust particles into the motor.
8. Noise and Maintenance free operations due to water lubricated bearings.
9. Water lubricated Carbon bearings to withstand high axial thrust load
10. 20 % glass filled noryl impellers
